America Solar Monocrystalline 100 watt panel

ASW-100M

Engineered in the USA & made abroad

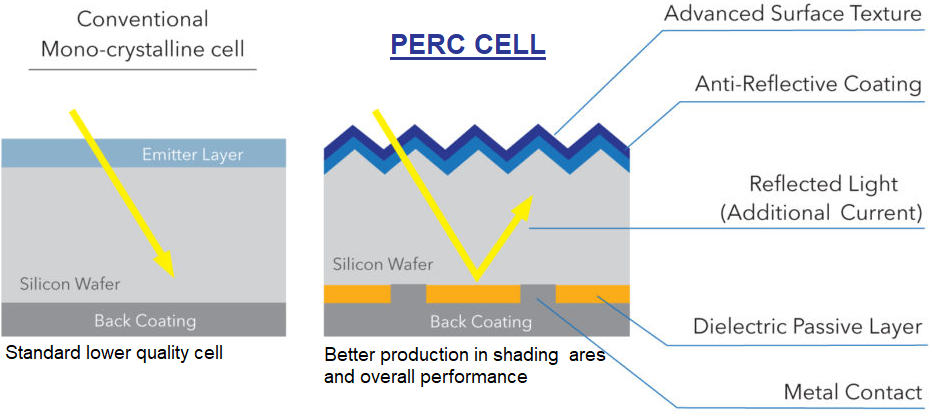

All cells are MONO-PERC up to 22% efficient

FEATURES

  • TUV, CE, VDE, ISO, IEC CERTIFIED
  • High Module Conversion Efficiency Fast and Inexpensive Mounting
  • Maximizes System Output by
  • Reducing the Mismatch Loss.
  • 100% EL Testing on All ASW Modules, Guaranteed No Hotspot
  • Guaranteed Positive Output Tolerance (0+3%)
  • Withstand High Wind (2400 Pa) and Snow Loads (5400 Pa)
  • Excellent Performance in Low Light Environments

FUNCTION

Off-Grid power production 12 volt. 24 volt, 36 volt and 48 volt power.

Panels are designed for up to 28 panels in a single string.

One panel for 12 volts, Two panels for 24 volt. Three panels for 36 volt.  Four panels for 48 volt.

Perfect for RV, Mobil-homes, Boats, Cabins, Solar security, Off grid power, Solar powered gates and Tiny homes.

ELECTRICAL

Maximum Power at STC (Pmax) 100 W
Optimum Operating Voltage (Vmp) 17.7 V
Optimum Operating Current (Imp) 5.7 A
Open-Circuit Voltage (Voc) 21.4 V
Short-Circuit Current (Isc) 6.3 A
Maximum System Voltage 600 VDC per string

STC: Irradiance 1000 W/m², module temperature 25°C, AM=1.5



MECHANICAL

Solar Cell Monocrystalline 6” x 6”
Cells 36 ( 4 x 9 )
Dimensions 26.6 x 39.6 x 1" (inch)
Weight 17.1 lbs
Front Glass 3.2 mm (0.13 inches) tempered glass
Frame Anodized aluminum alloy
Junction Box IP65 rated
Output Cables 4.0 mm2( 0.006 inches2 ), 800mm ( 31.5 inches )
Connectors MC4 connectors
Fire Rating Class A (depending on racking assembly)



MAXIMUM RATINGS

Operating Module Temperature -40°C to +90°C



TEMPERATURES

Nominal Operating Cell Temperature ( NOCT )47±2°C
Temperature Coefficient of Pmax -0.44%/°C
Temperature Coefficient of Voc -0.30%/°C
Temperature Coefficient of Isc 0.04%/°C



All America Solar modules are guaranteed to perform for 25 years from the date of purchase. Performance standards insure linear production levels starting at 97.5% at the end of the first year and a maximum decrease of only .07% each year thereafter.

5 years at 95% or above

5 more years at 90% or above 15 more years at 80% or above
10 year material & workmanship guarantee



American Solar panels are certified by 5 organizations: CE, DVE, TUV, IEC, and ISO.   Call to Order 276-226-0228
